Inline
Saws
|
|

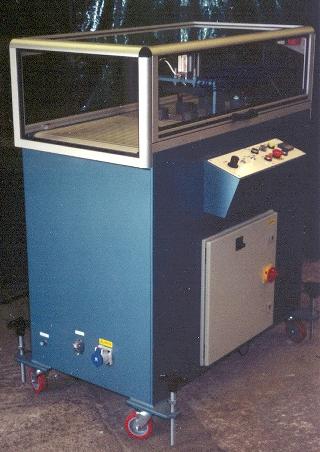

75mm Inline Saw
|

Detail of Guide and Clamp Assembly
|
Inline Saw Features:
|
-
A range of five machines with maximum diameter
capacities of: 50mm, 75mm, 100mm, 125mm, 150mm. Please refer to the
materials handling chart below
|
-
All machines have:- saw feed, table out and
return, clamp movement and blade speed controls. Machines can be
fitted with programmable control to enable two differing lengths to be
cut alternately
|
-
Table movement is powered by pneumatic
cylinders, but for semi-rigid materials and where better accuracy
length holding or fast line speeds are required, a servo tracking
system can be fitted
|
-
Length setting can be by means of an encoder
with counter system, flap switch, photo eye, or dead stop dependent on
application
|
-
Sealed for life linear bearing slide ways are
fitted to ensure long life and minimum maintenance under arduous operating
conditions
|
-
High speed steel or carbide
tipped blades are available
|

Materials Handling Chart
|
Click here to
download a copy of the chart to print in Adobe Acrobat format (.pdf)
|
